Manufacturer may substitute components with components of equal or greater performance level.
TECHNOLOGY:
The light (2.8 kg) and compact Shimano Steps E7000 drive unit delivers up to 60Nm of natural feeling torque for effortless climbs and all-around fun
The big 504Wh e-Tube battery integrates neatly into the frame and gives you the range for serious adventure up to 100 kilometers (60 miles)
A weather-sealed cover allows for easy access and keeps the battery dry and safe
FEATURES:

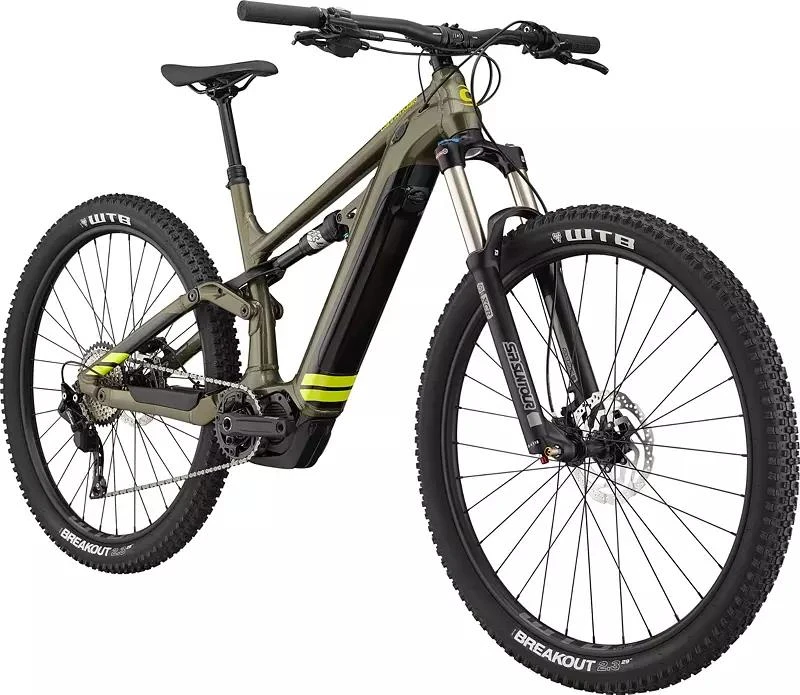

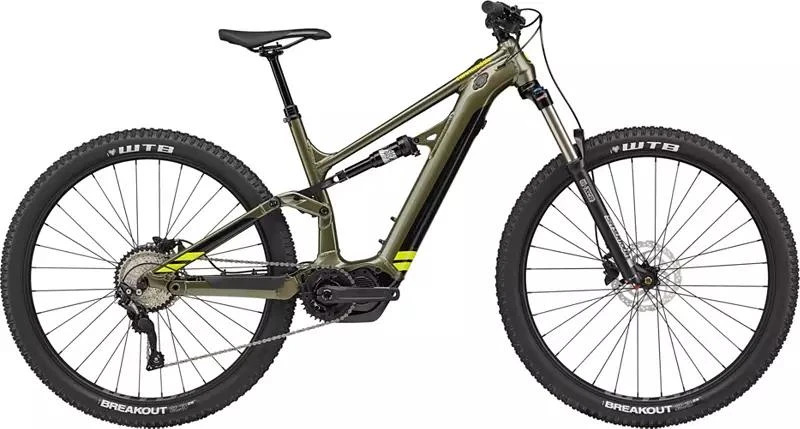

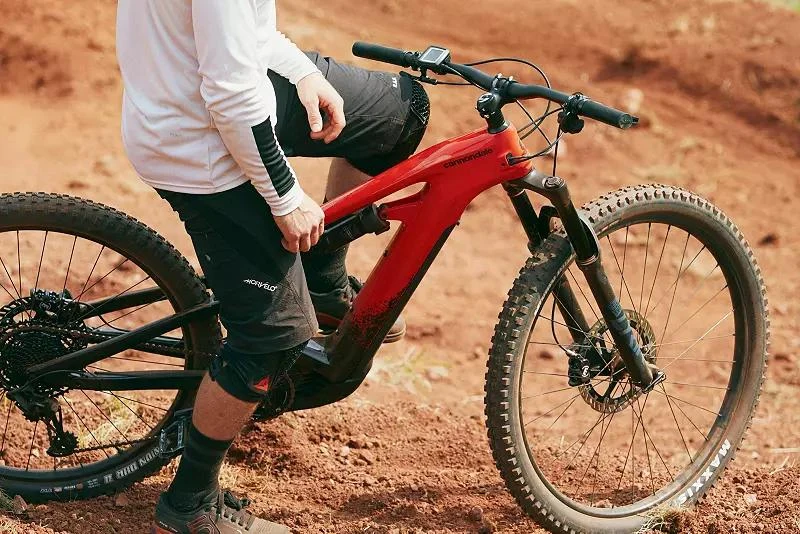

An aluminum e-mountain bike with infinite capability for the steepest descents and the hardest climbs – with fully integrated all-mountain e-bike technology
Built for the trails and thrives in the mountains
With its low center of gravity, progressive geometry and short chain stays, Moterra Neo’s handling is impressively precise, surprisingly agile, and incredibly fun on any terrain
With refined butting and precisely controlled tube shapes, the SmartForm C2 alloy construction boasts 150 mm of suspension for all-day, all-mountain attack
SR Suntour XCR LO Boost fork
Shimano Deore 10-speed drivetrain / hydraulic disc brakes
Fast-rolling 29” large-volume tires, wide handlebars, a huge gear range and one of the best finishing kits in the game sets you up with an electric mountain bike that you can rely on

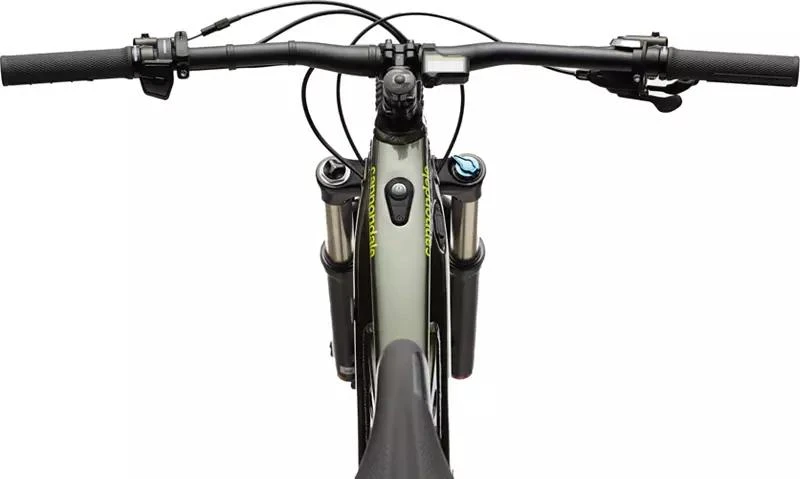

Shimano easy-to-use switch unit lets you change assist modes without ever taking your hands from the bars, while the easy-to-read display gives all the important information – speed, battery level, mode and more at a glance
Optimized for e-mtbs, our tuned 4-bar link suspension delivers 150 mm of travel, with a crisp pedaling feel, grippy traction on climbs and supple smoothness on the descents
Dialed trail handling with proper trail-riding frame geometry
Thru-axle pivot system creates a rock-solid connection between both sides of the swingarm
Pedals not included
FDNY/DCWP Fire Safety Materials
NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. Public Lands will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, Public Lands is not responsible for injuries or damages resulting from improper assembly.
Size and Fit:
Thru-Axle Pivot System

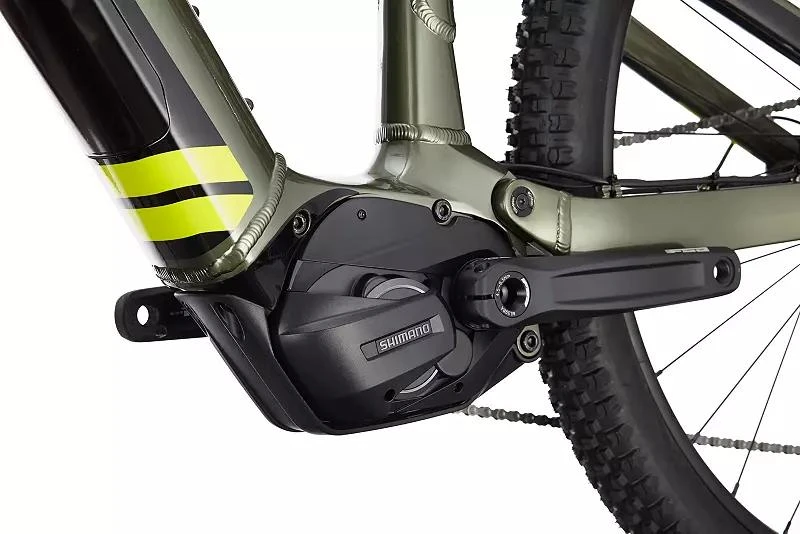

Shimano Steps E7000 drive unit
Shimano Deore 10-speed drivetrain / hydraulic disc brakes
Country of Origin: Imported
Size and Fit Summary: Thru-Axle Pivot System | Shimano Steps E7000 drive unit | Shimano Deore 10-speed drivetrain / hydraulic disc brakes
Chain:
Shimano Deore, 10-speed
Crank:
FSA Shimano E-Bike, 165mm, FSA Megatooth, 34T
Rear Cogs:
Shimano HG500, 11-42, 10-speed
Frame:
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube

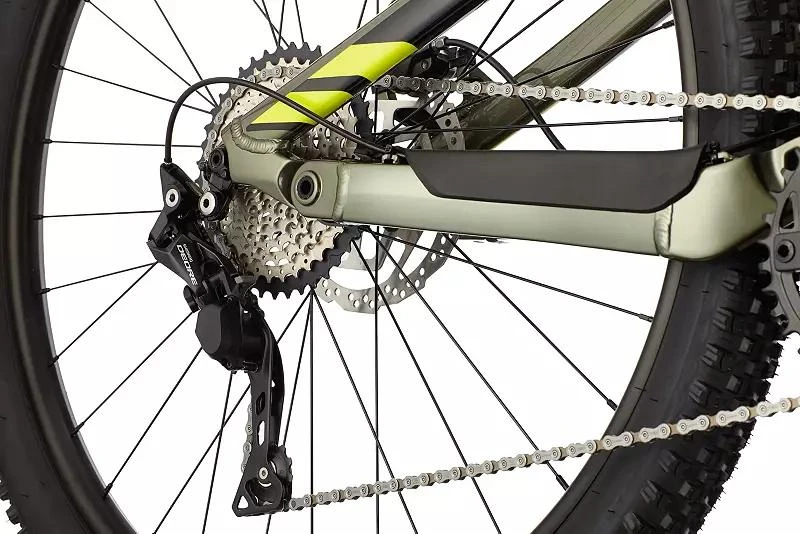

Rear Derailleur:
Shimano Deore M6000
Fork:
SR Suntour XCR LO Boost 29, 140mm travel, 15mm thru axle, Tapered Alloy Steerer

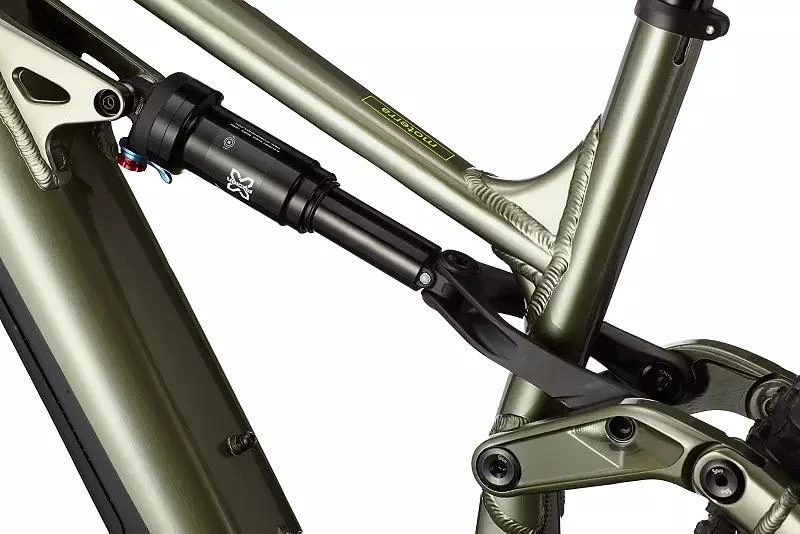

Rear Shock:
X-Fusion 02 Pro RL, Rebound and Lockout
Shifters:
Shimano Deore M4100, 10-speed
Headset:
Integrated Sealed Bearing, Tapered
Tires:
WTB Breakout, 29 x 2.3", DNA Compound, Comp Level, 30TPI
Tire Size:
2.3
Front Hub:
Shimano MT400, 15x110mm thru-axle
Rear Hub:
Shimano MT400 12x148
Spokes:
Stainless Steel, 14g
Rims:
WTB STX i25 TCS, 32h, tubeless ready
Wheel Size:
29"
Brake Levers:
Shimano MT200 hydraulic disc
Brakes:
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Handlebar:
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Saddle:
Cannondale Ergo XC
Grips:
Cannondale Locking Grips
Stem:
3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Seat:
Fabric Scoop Radius Sport, Steel Rails
Seat Post:
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)
E-System Drive Unit:
Shimano STEPS DU-E7000 250W
E-System Battery:
Shimano STEPS BT-E8035, 504Wh
E-System Charger:
Shimano Battery Charger 2A
E-System Display:
Shimano GRX RX400, Shadow Plus
Extra 1:
Pre-Installed light cables
Style Variants
Available Colors: Mantis
Size Reference for Cannondale 5 Electric Mountain Bike
Available Sizes: L, M, XL
